Horn Relocation Bracket
on: May 06, 2022, 04.26 PM
The one thing about the stock bike I never liked was the horn location and after some searching and inspiration (https://www.trident660.com/index.php/topic,106.msg2650.html#msg2650) from our fellow rider, Gonzy, I set off to improve how to relocate the horn to a better location.

At first it was just a simple bend of a metal bracket that came with the horns, a quick wire harness and Bob’s your uncle, right?

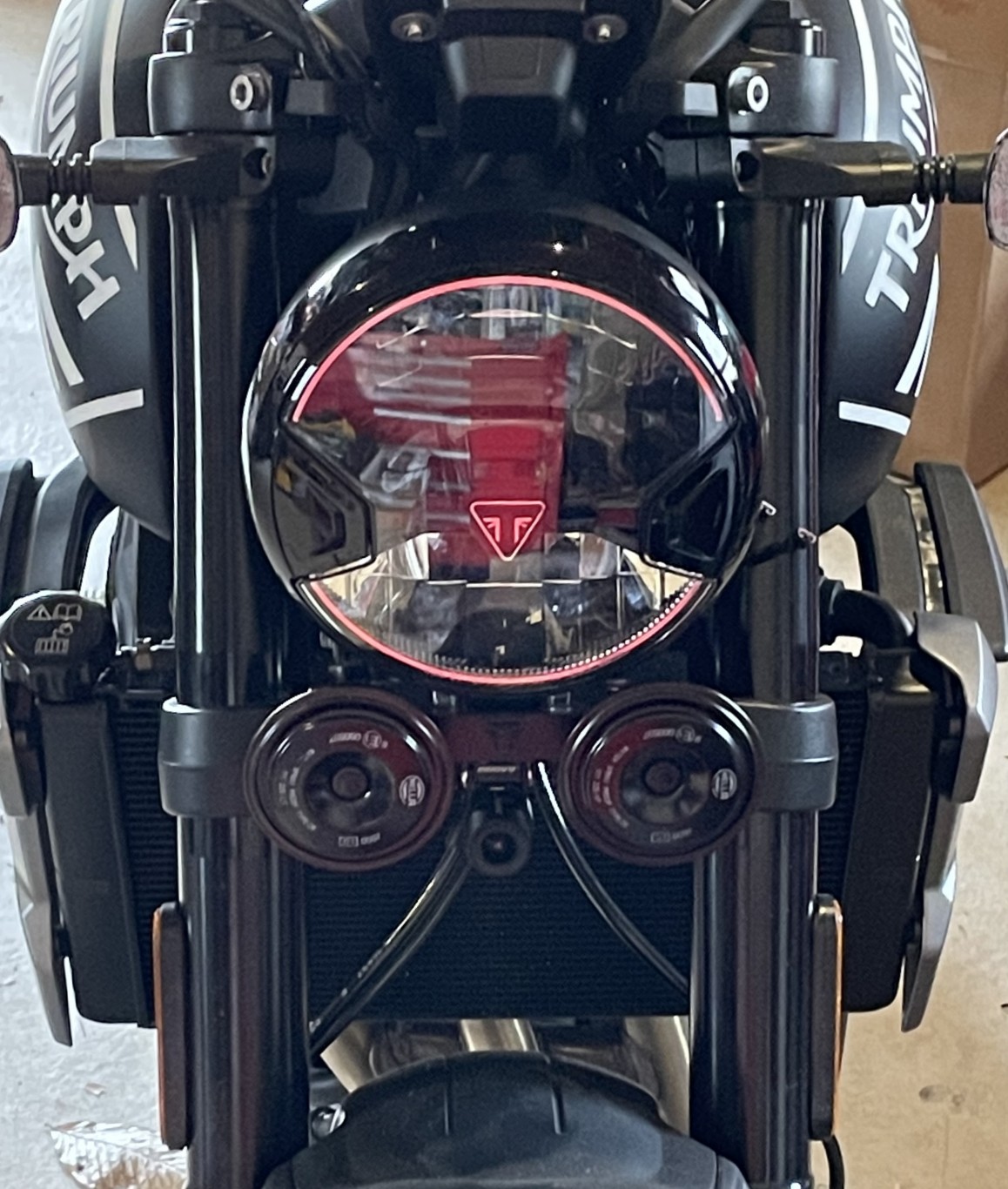

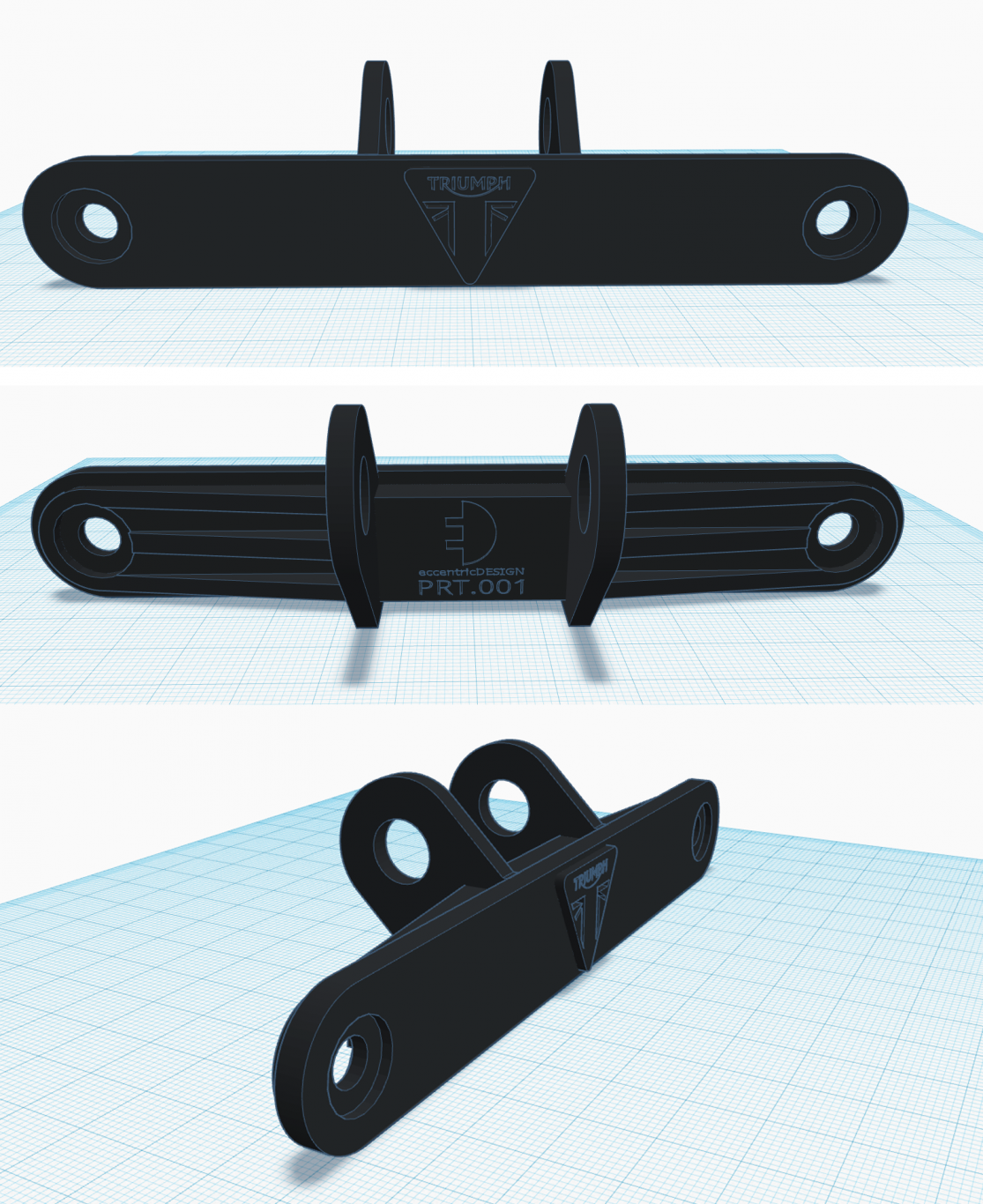

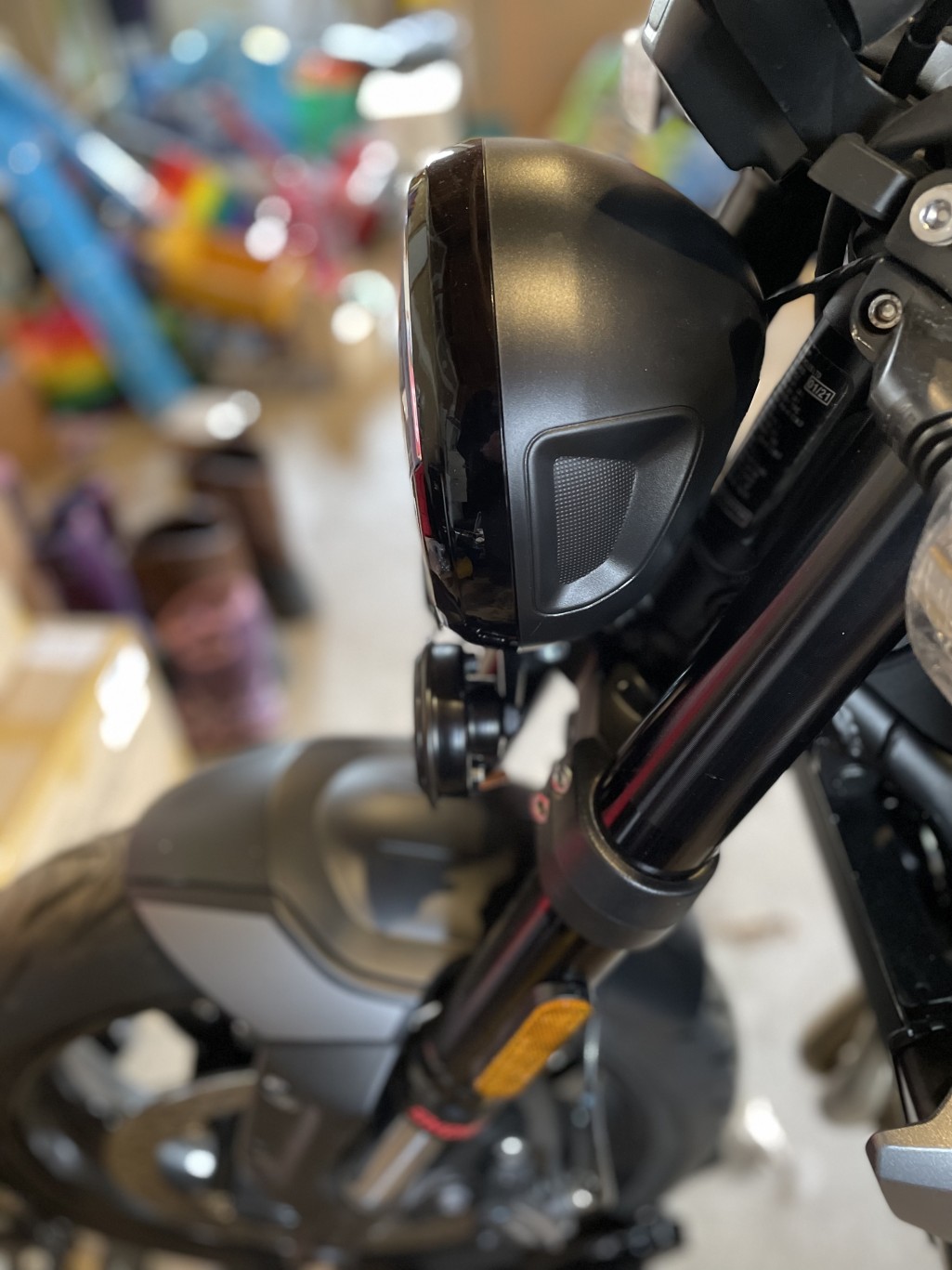

Mostly. The horn diameter and placement didn’t let me get the ‘just right’ alignment with the headlight. So, I fabricated a 3d model, sent to printer, and presto!








Now, at first I thought how could I sell it? Then would I really want to spend all that time printing, shipping, etc for about $5 dollars of plastic? Legal problems for putting a Triumph logo on it?

Nah… I rather be out riding. Here is a link to the .stl file. I present to you ‘as-is’ with no promises, warranties, or guarantees. You will need to get a longer bolt at any good hardware store to accommodate the extra width to the stock headlight bolt.

https://www.tinkercad.com/things/5gzTidNz7E0?sharecode=F1cTBWoxXi58P8joGVmeMCs3LIKxVLbbRBz-PkJ0zXk

#1

Offline MattR

  • Forum Help and Support
  • 660 Pro
  • *****
  • Posts: 66
  • Country: england
Re: Horn Relocation Bracket
Reply #1 on: May 06, 2022, 08.10 PM
Nice one, looks really good !  :762:

 :821:

#2

Offline chuasv

  • 660 Newbie
  • *
  • Posts: 6
  • Country: my
Re: Horn Relocation Bracket
Reply #2 on: May 11, 2022, 10.45 AM
Thanks for the schematics! Been looking for a bracket to fix the horn so that it'll look more like an RD350LC rather than a Triumph Trident.  :008:
